Varian
Varian Unit CBR150R

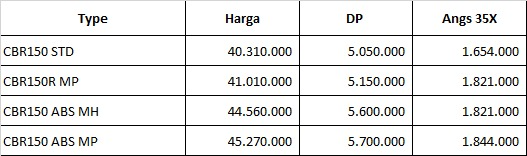

Harga
Harga Unit CBR150R
Spesifikasi
Spesifikasi Unit CBR150R
| Tipe Mesin | : | 4-Langkah, DOHC |
| Kapasitas Mesin | : | 149,16 cc |
| Sistem Suplai Bahan Bakar | : | PGM-FI (Programmed Fuel Injection) |
| Diameter X Langkah | : | 57,3 x 57,8 mm |
| Tipe Tranmisi | : | Manual, 6 kecepatan |
| Rasio Kompresi | : | 11,3 : 1 |
| Daya Maksimum | : | 12,6 kW (17,1 PS / 9.000 rpm ) |
| Torsi Maksimum | : | 14,4 Nm (1.47 kgf.m / 7.000 rpm ) |
| Tipe Starter | : | Elektrik |
| Tipe Kopling | : | Wet |
| Sistem Pendingin Mesin | : | Liquid Cooled with Auto Fan |
| Pola Perpindahan Gigi | : | 1-N-2-3-4-5-6 |
| Tipe Rangka | : | Diamond (Truss) Frame |
| Tipe Suspensi Depan | : | Inverted Telescopic Front Suspension |
| Tipe Suspensi Belakang | : | Swing Arm with Monoshock (Pro-Link) System |
| Ukuran Ban Depan | : | 100/80-17M/C 52P |
| Ukuran Ban Belakang | : | 130/70-17M/C 62P |
| Rem Depan | : | Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
| Rem Belakang | : | Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
| Panjang X Lebar X Tinggi | : | 1.983 x 700 x 1.077 mm |
| Tinggi Tempat Duduk | : | 782 mm |
| Jarak Sumbu Roda | : | 1.310 mm |
| Jarak Terendah Ke Tanah | : | 160 mm |
| Curb Weight | : | 137 kg (Non ABS)/139 kg (ABS) |
| Kapasitas Tangki Bahan Bakar | : | 12 Liter |
| Kapasitas Minyak Pelumas | : | 1,1 Liter |
| Tipe Baterai Atau Aki | : | MF Wet 12V 5Ah |
| Sistem Pengapian | : | Full Transisterized |
| Tipe Busi | : | NGK MR9C-9N atau ND U27EPR-N9 |
