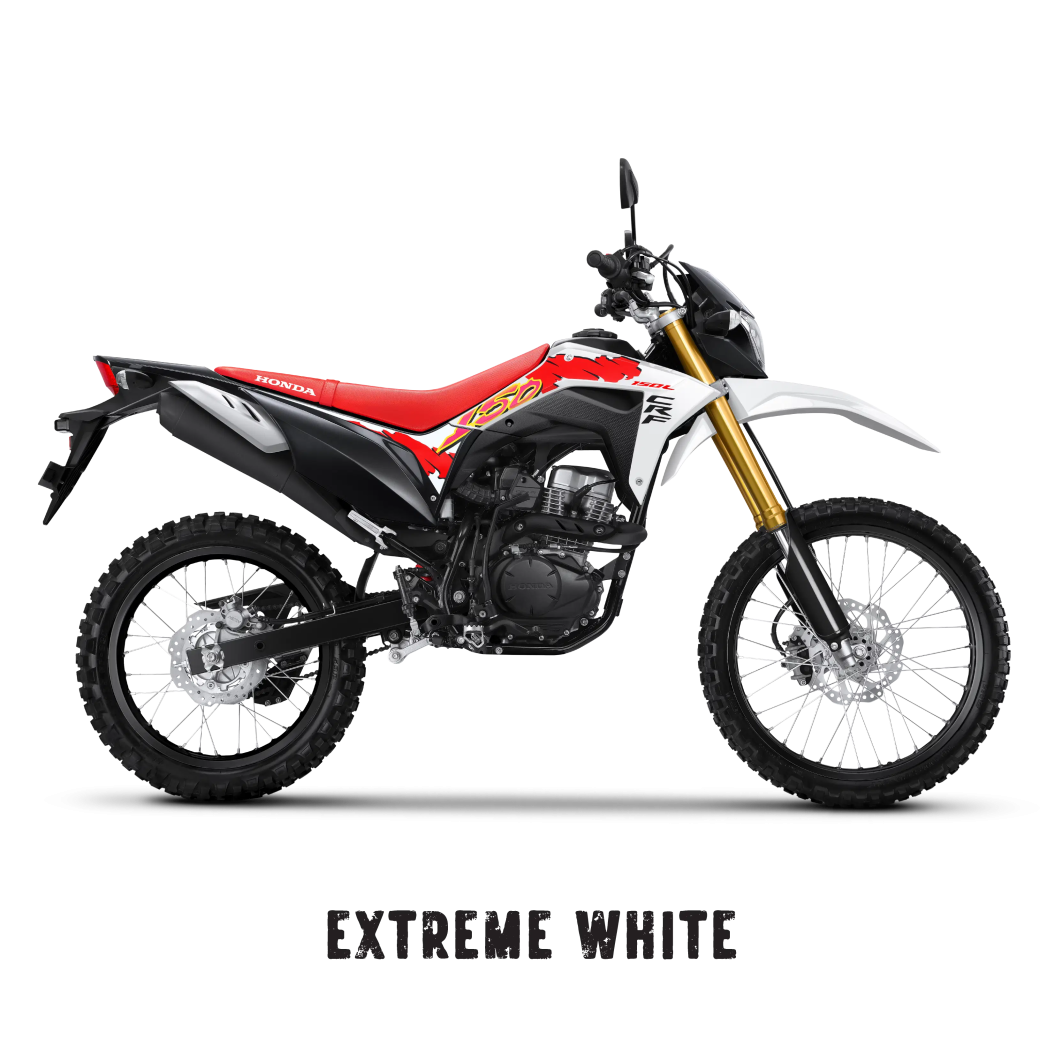

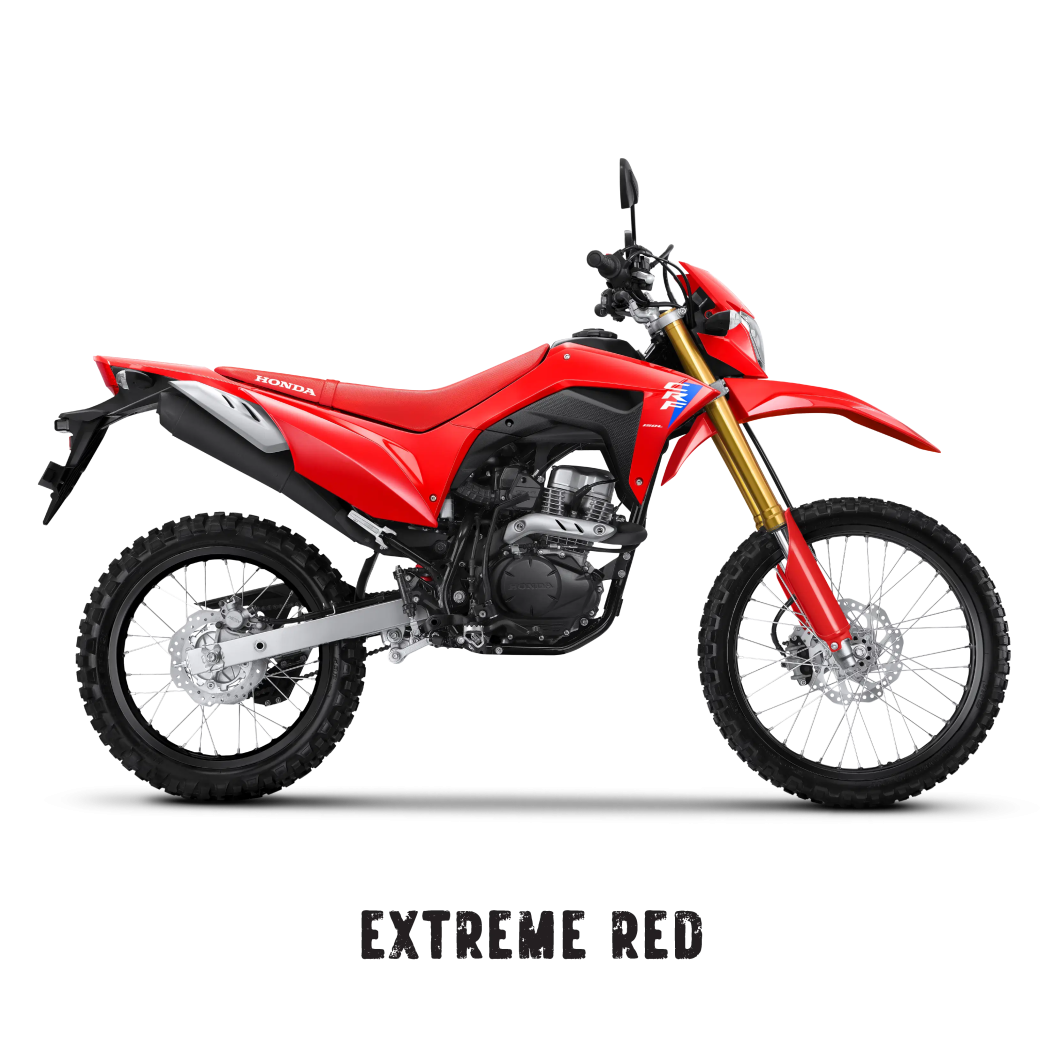

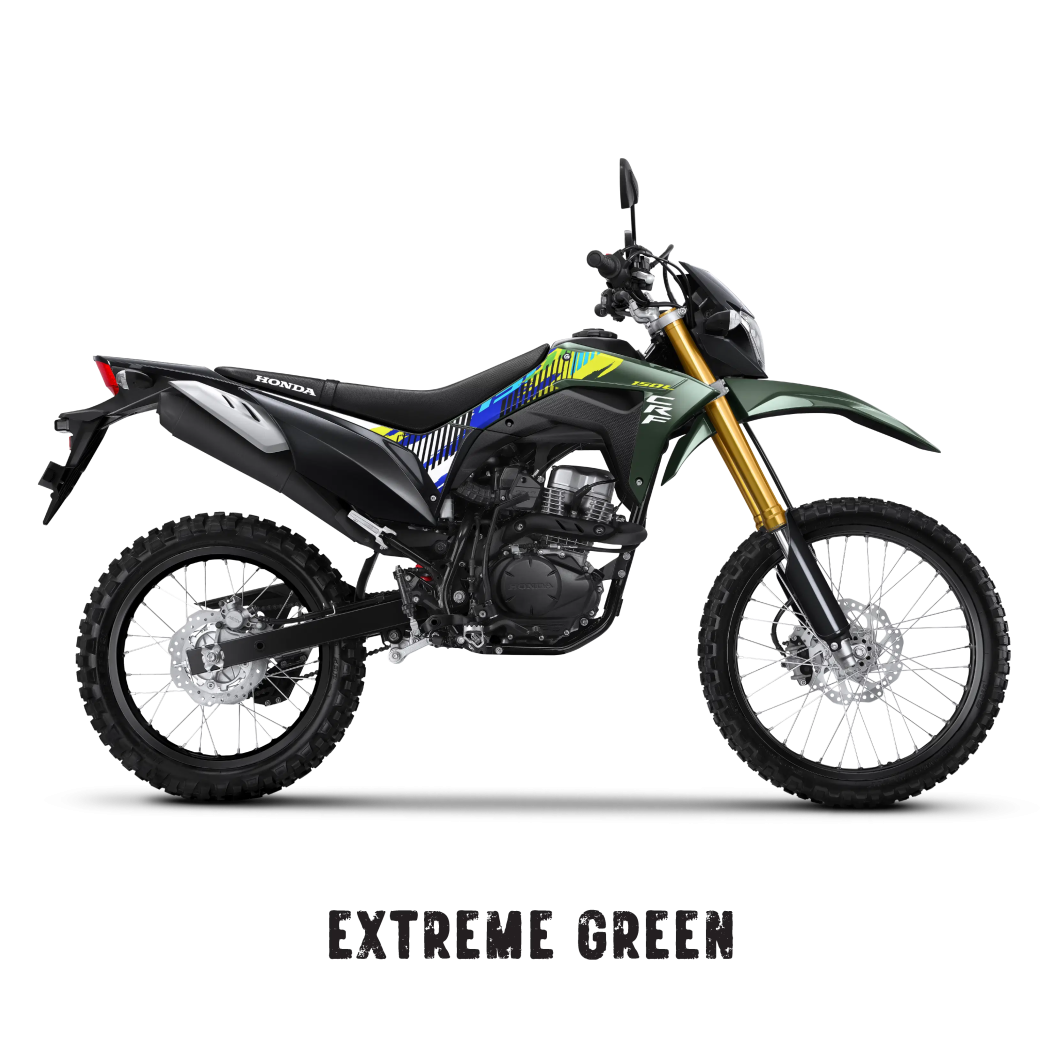

Varian

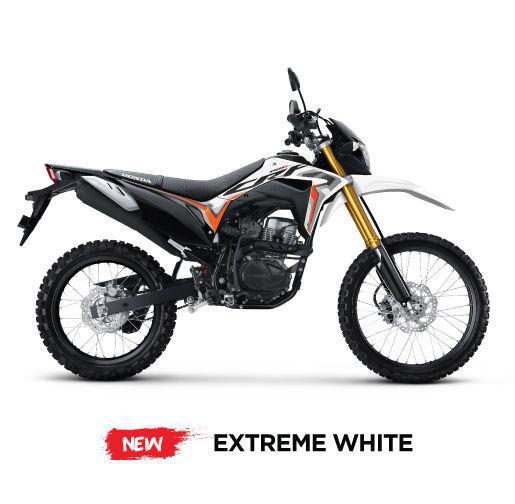

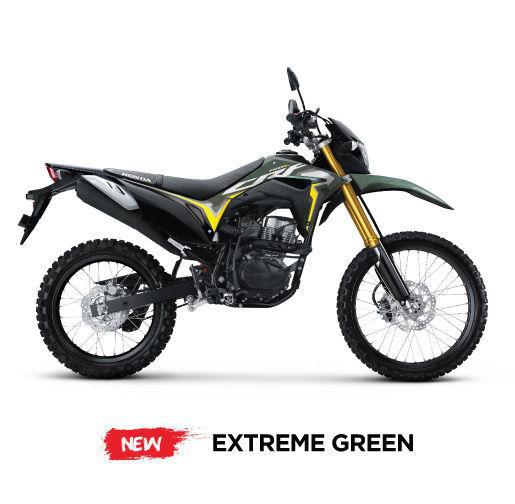

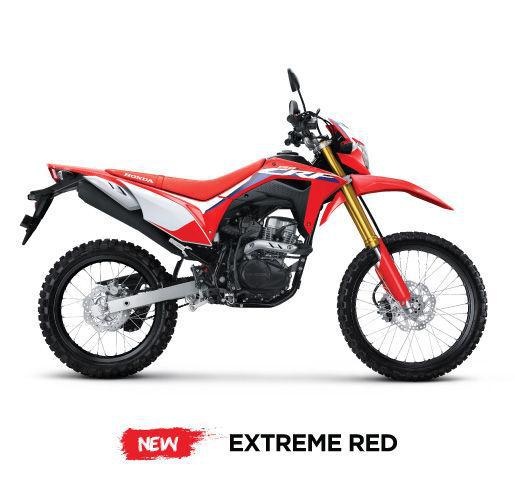

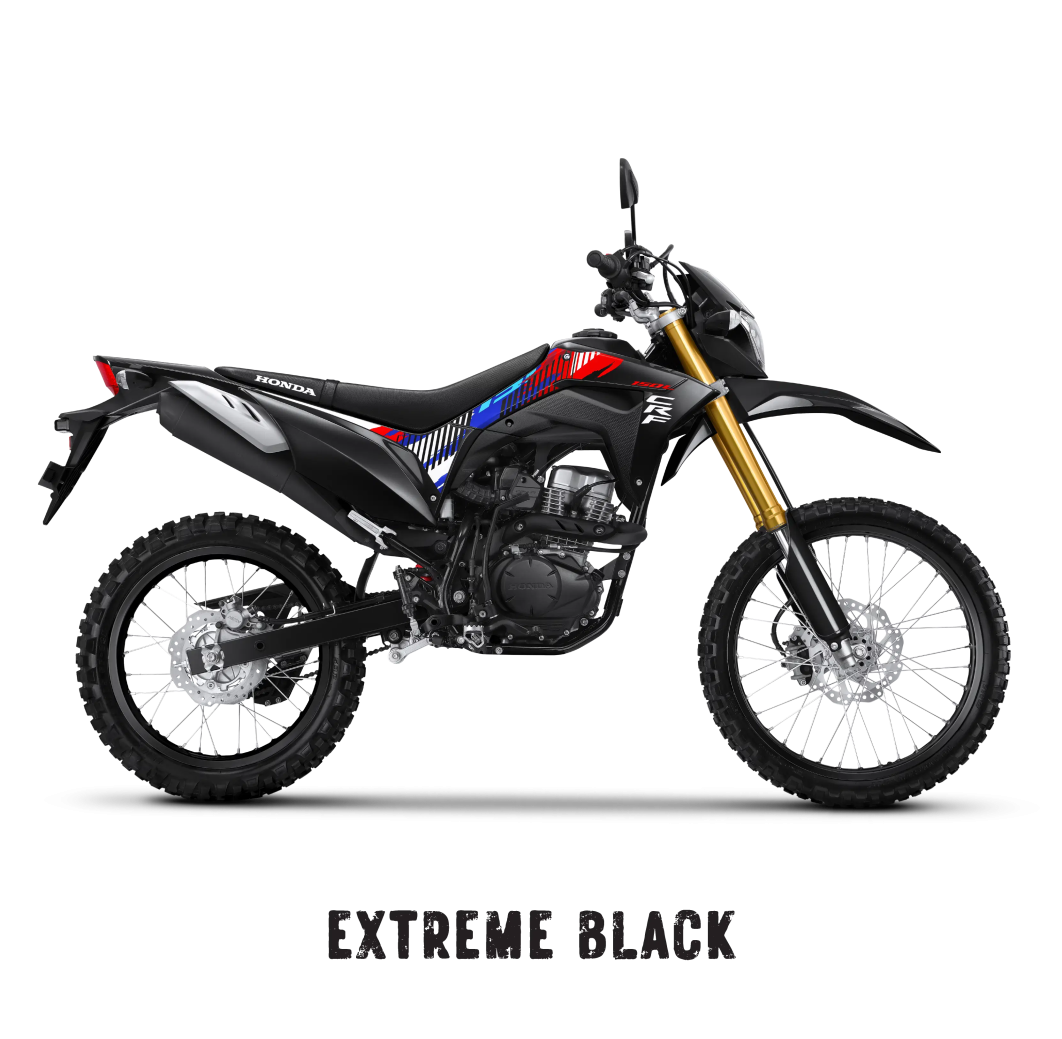

Varian Unit CRF150L
Harga
Harga Unit CRF150L
Spesifikasi
Spesifikasi Unit CRF150L
| Tipe Mesin | : | 4-Langkah, SOHC, Satu Silinder |
| Kapasitas Mesin | : | 149.15 cm3 |
| Sistem Suplai Bahan Bakar | : | PGM-FI (Programmed Fuel Injection) |
| Diameter X Langkah | : | 57.3 x 57.8 mm |
| Tipe Tranmisi | : | 5-Speed |
| Rasio Kompresi | : | 9.5:1 |
| Daya Maksimum | : | 9,51 kW(12,91 PS)/8.000 rpm |
| Torsi Maksimum | : | 12,43 Nm(1,27 kgf.m)/6.500 rpm |
| Tipe Starter | : | Pedal dan Elektrik |
| Tipe Kopling | : | Manual, Multiplate Wet Clutch |
| Sistem Pendingin Mesin | : | Pendingin Udara |
| Pola Perpindahan Gigi | : | 1 – N – 2 – 3 – 4 – 5 |
| Tipe Rangka | : | Semi Double Cradle |
| Tipe Suspensi Depan | : | Inverted Telescopic Front Suspension (Diameter 37 mm & Stroke 225 mm) |
| Tipe Suspensi Belakang | : | Monosuspension with Pro-Link Suspension System (Axle Travel 207 mm) |
| Ukuran Ban Depan | : | 2.75 – 21 45P (Ban Dalam) |
| Ukuran Ban Belakang | : | 4.1 – 18 59P (Ban Dalam) |
| Rem Depan | : | Cakram Hidrolik (Wavy Disc, 240 mm) |
| Rem Belakang | : | Cakram Hidrolik (Wavy Disc, 220 mm) |
| Rear Wheels | : | U-section 10 spoke cast alumunium |
| Front Wheels | : | U-section 10 spoke cast alumunium |
| Panjang X Lebar X Tinggi | : | 2.119 X 793 X 1.153 mm |
| Tinggi Tempat Duduk | : | 869 mm |
| Jarak Sumbu Roda | : | 1.375 mm |
| Jarak Terendah Ke Tanah | : | 285 mm |
| Curb Weight | : | 122 kg |
| Kapasitas Tangki Bahan Bakar | : | 7.2 L |
| Kapasitas Minyak Pelumas | : | 1.0 Liter (Penggantian periodik) |
| Tipe Baterai Atau Aki | : | MF Wet 12V 3.5Ah |
| Sistem Pengapian | : | Full Transisterized |
| Tipe Busi | : | NGK MR9C-9N atau ND U27EPR-N9 |
| Tail Light | : | LED |
